In heavy material handling, structural over-travel is one of the quickest paths to costly mechanical collisions, motor burnout, and workplace safety hazards. When electric overhead traveling (EOT) cranes, crabs, and hoists travel at operational speeds along steel girders, having a reliable physical stop trigger is not optional—it is a critical mechanical safety line.

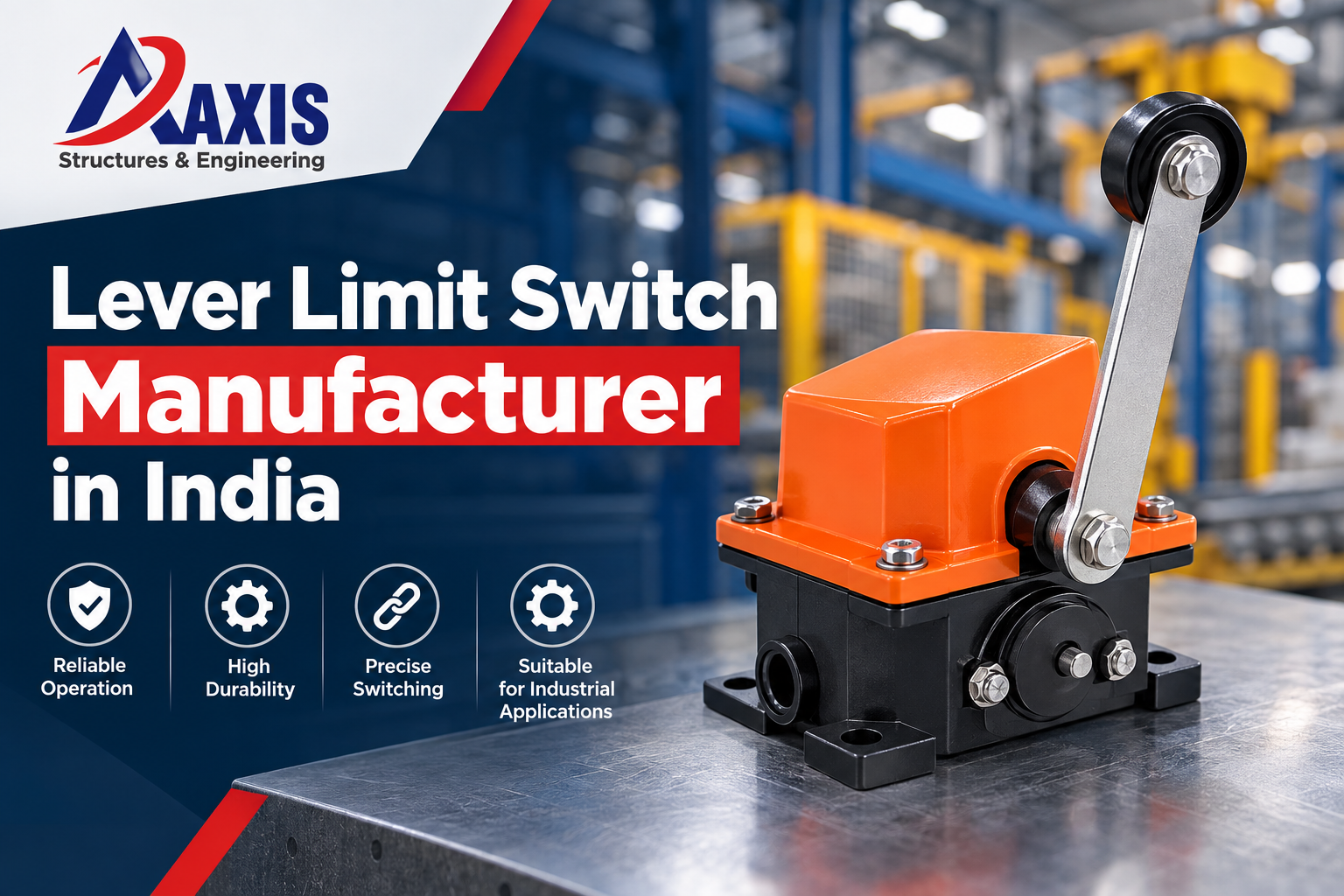

Axiscranes is a dedicated Lever Limit Switch Manufacturer in India, producing heavy-duty electromechanical lever limit switches designed for long travel (LT) and cross travel (CT) end-of-limit sensing, automatic motor cut-off, and self-resetting position protection on industrial cranes.
A lever limit switch is a heavy-duty mechanical limit switch mounted on a moving crane bridge or trolley. When the crane reaches its maximum travel boundary, the extended operating lever physically hits a fixed mechanical striker plate on the bay structure. This instantly opens the switch contacts, breaking the motor control circuit to stop linear motion before structural collision occurs.
Working Principle & Mechanical Construction
A lever limit switch operates through direct physical actuation. Built with a two-way action system, the switch features an extended operating lever attached to an internal camshaft assembly. When the moving crane bridge or trolley approaches its limit, the lever makes contact with an external fixed actuator or trip bracket attached to the runway girder.
As the lever rotates past a pre-set angular threshold, it trips the internal snap-action mechanism:
- Electrical Cut-Off: Normally Closed (NC) contacts open immediately, cutting control voltage (or main power) to the motor contactors.
- Friction & Brake Activation: Drive motors disengage, allowing mechanical brakes to bring the crane to a controlled stop before hitting end-stops.
- Automatic Spring Reset: When the operator reverses the crane direction, the lever moves back away from the striker plate, and heavy-duty internal springs automatically reset the lever and contacts back to zero position.
Technical Specifications & Design Ratings
Selecting the correct electromechanical switch requires matching the electrical duty cycle, housing material, and contact ratings to your crane's control circuit architecture:
| Parameter | Standard Control Circuit Spec | Heavy Power Duty Spec |
|---|---|---|
| Operating Voltage | 110V AC / 240V AC / 440V AC | Up to 500V AC (50 Hz) |
| Thermal Current Rating | 10 Amps continuous | 40 Amps continuous |
| Contact Configuration | 1NO + 1NC / 2NO + 2NC | 2 Phase direct power break |
| Enclosure Protection | IP54 / IP55 (Dust & Splash Proof) | IP55 Cast Iron / Aluminum Housing |
| Contact Material | Silver Cadmium / Silver Alloy Tips | Heavy-Duty Silver Cadmium |
| Operation Mode | Two-Way Self Resetting (Spring Return) | Two-Way Self Resetting / Weight Type |
Types of Crane Limit Switches Manufactured by Axiscranes
1. Two-Way Self-Resetting Lever Limit Switch
The standard choice for Long Travel (LT) and Cross Travel (CT) motions. Features an adjustable roller arm or steel lever that trips when driven over a striker in either direction and automatically returns to center upon reversing.
2. Weight-Operated / Counterweight Limit Switch
Primarily installed on hoist mechanisms to prevent over-hoisting. A suspended counterweight holds the lever in a closed contact position; when the hook block lifts the weight, spring tension trips the switch to stop the winch motor instantly.
3. Rotary Geared Limit Switch
Directly coupled to the hoist drum shaft or gearbox shaft, using adjustable internal cams to offer micro-meter precision for upper and lower hook travel limits across high lift heights.
Buyer’s Guide & Common Installation Mistakes
Even high-quality safety switches can fail prematurely if incorrectly selected or installed. When evaluating a Lever Limit Switch Manufacturer in India, pay close attention to these practical maintenance and selection factors:
- Alignment Misalignment: Ensure the mechanical trip striker plate on the girder strikes the lever squarely at the recommended contact angle. Off-center contact creates high side-shear loads that can bend the switch shaft.
- IP Rating Selection: For outdoor steel yards or foundry environments, standard light sheet-metal housings quickly fail. Opt for cast aluminum or heavy cast iron bodies with tight rubber gasket seals.
- Contact Arcing & Material: In direct motor power switching (40A series), lower-grade contact metals weld together due to arc pitting. Ensure contacts are made with anti-weld silver cadmium alloy.
- Spring Fatigue Checks: Over time, environmental heat and millions of cycles soften internal reset springs. Inspect spring tension during quarterly preventive crane audits.
"A crane limit switch is your final safety line before physical structural impact. When specifying switches for heavy industrial cranes, we focus on mechanical over-travel allowance, rigid housing gaskets, and spring durability so the switch functions reliably every single time without requiring constant field recalibration."
Why Choose Axiscranes?
Axiscranes manufactures reliable material handling accessories and crane safety components engineered to withstand demanding Indian shop floor conditions:
- Rugged Build Quality: Enclosures designed in heavy cast aluminum and sheet steel with IP54/IP55 environmental protection.
- High Electrical Cycling: Contact blocks engineered for long mechanical life and minimal contact resistance under high vibration.
- Direct Replacement Compatibility: Standard mounting dimensions and conduit entries for quick retrofit on existing EOT crane models.
- Nationwide Availability: Prompt dispatch and technical support for plant engineers and crane maintenance teams across India.
Frequently Asked Questions
What is a lever limit switch in EOT crane operations?
A lever limit switch is an electromechanical safety control device mounted on a crane bridge or trolley. When movement reaches its physical limit, an actuator lever contacts a fixed striker plate on the runway, breaking the circuit and stopping the motor to prevent end-wall collisions.
How does a two-way self-resetting lever limit switch operate?
When the moving crane trips the lever in either direction, internal contacts switch state to disconnect motor power. Once the operator reverses direction away from the end limit, internal spring tension automatically returns the lever and contacts back to zero position.
What current ratings are available for Axiscranes lever limit switches?
Axiscranes lever limit switches are commonly manufactured for 10 Amp control circuit duty as well as 40 Amp heavy power circuit applications operating at up to 500V AC.
Where should a lever limit switch be installed on a crane?
Lever limit switches are typically mounted at the ends of the crane bridge for Long Travel (LT) limit sensing, on the crab frame for Cross Travel (CT) limit sensing, or on wagon shunting equipment where linear physical stopping points must be mechanically triggered.
What enclosure protection rating is recommended for industrial limit switches?
An IP54 or IP55 dust- and splash-proof housing is recommended for industrial shop floors to prevent airborne dust, metal filings, and oil mist from fouling internal electrical contacts.
What is the main difference between a lever limit switch and a rotary gear limit switch?
A lever limit switch is triggered directly by linear mechanical contact at structural boundaries. A rotary gear limit switch is coupled directly to a rotating hoist drum or gearbox shaft, counting shaft rotations to control precise upper and lower hook stop limits.
How do contact materials affect lever limit switch performance?
High-grade Silver Cadmium or Silver Alloy contact tips resist electrical arcing and pitting during repeated motor switching under load, drastically increasing operational reliability and contact service life.
Looking for a Reliable Lever Limit Switch Manufacturer in India?
Contact Axiscranes today for technical specifications, custom contact options, and competitive quotes for heavy-duty crane safety switches and motion controls.
